Packaging Solutions & Blow Molding Technologies
Advanced Manufacturing for High-Performance Plastic Containers
We leverage multiple molding platforms — ISBM, IBM, EBM and SBM — to deliver PET and HDPE containers engineered for performance, consistency, and scalability.
From beverage and nutraceutical packaging to pharmaceutical, household, and personal care applications, our manufacturing capabilities are selected based on the functional requirements of each product.
Engineered Through Advanced Blow Molding Technologies
We utilize a range of molding technologies to optimize container clarity, strength, dimensional accuracy, and production efficiency. Each process offers distinct advantages depending on material selection, product design, and performance requirements.
ISBM
Injection Stretch Blow Molding for high-clarity, high-strength PET containers.
IBM
Injection Blow Molding for precision, small-format containers with tight tolerances.
EBM
Extrusion Blow Molding for durable, versatile HDPE containers of any shape.
SBM
Reheat Stretch Blow Molding for high-volume, high-efficiency PET production.

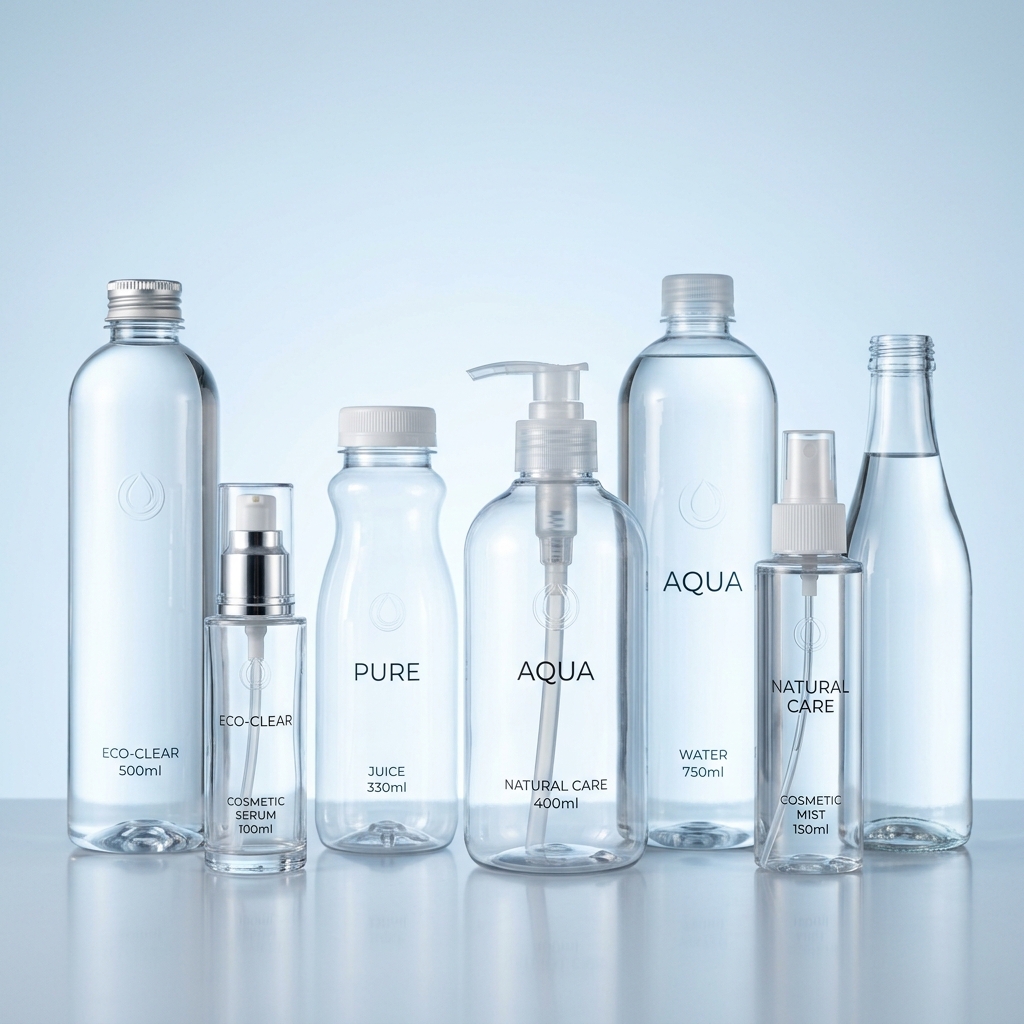

ISBM – Injection Stretch Blow Molding
Injection Stretch Blow Molding (ISBM) is widely used for producing high-clarity PET containers with excellent strength-to-weight ratios. In this process, the plastic is injected into a preform and then stretched both axially and radially to align the molecules.
- Superior clarity and gloss
- Biaxially oriented strength
- High top-load & impact resistance
- Consistent wall thickness
- Lightweighting opportunities
- PET beverage bottles
- Personal care containers
- Oral care & mouthwash
- Nutraceutical packaging
Process 01
Process 02

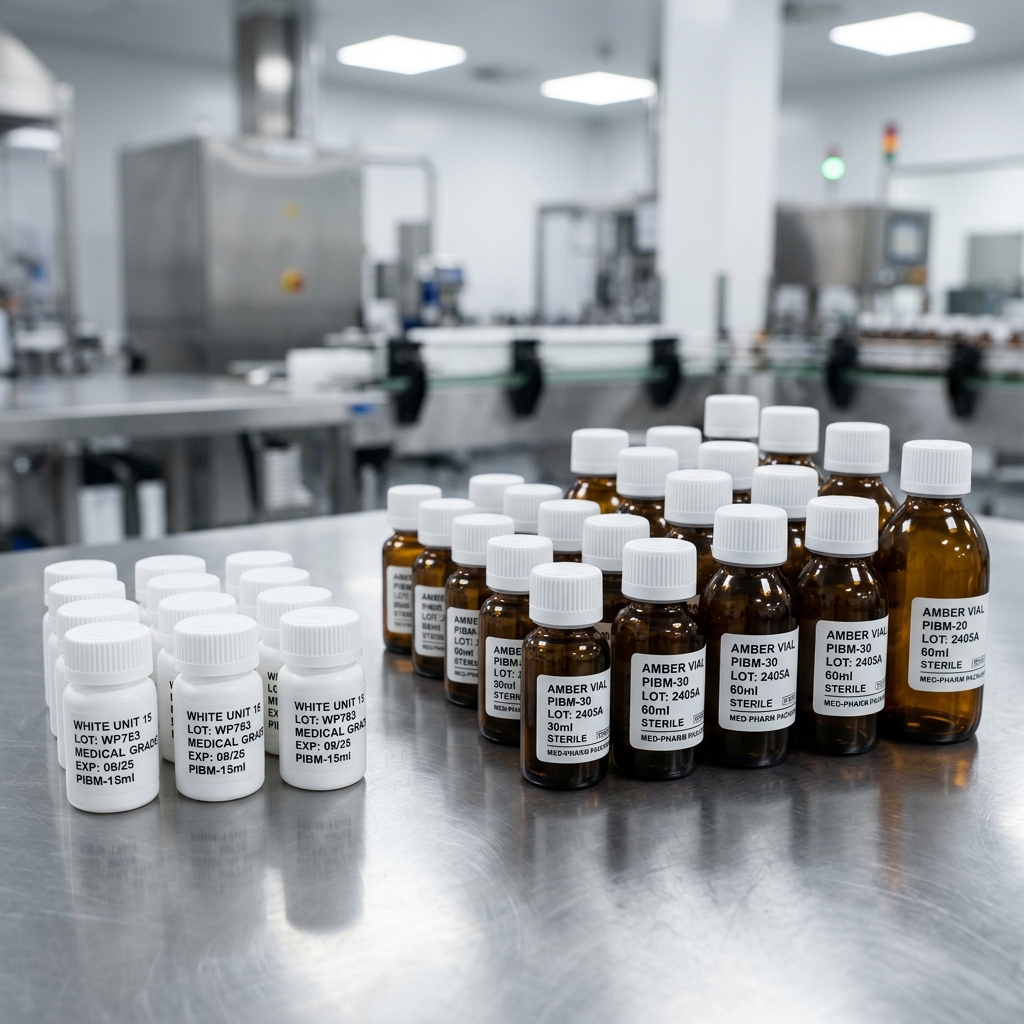

IBM – Injection Blow Molding
Injection Blow Molding (IBM) is a precision molding process often used for smaller, highly controlled containers requiring dimensional consistency. The neck finish is molded with extreme accuracy during the first stage, followed by blowing the body.
- Precision neck finish
- Tight dimensional tolerances
- Smooth premium surface finish
- Reduced flash and trimming
- Highly repeatable quality
- Pharmaceutical bottles
- Nutraceutical containers
- Small personal care bottles
- Medical & specialty packaging

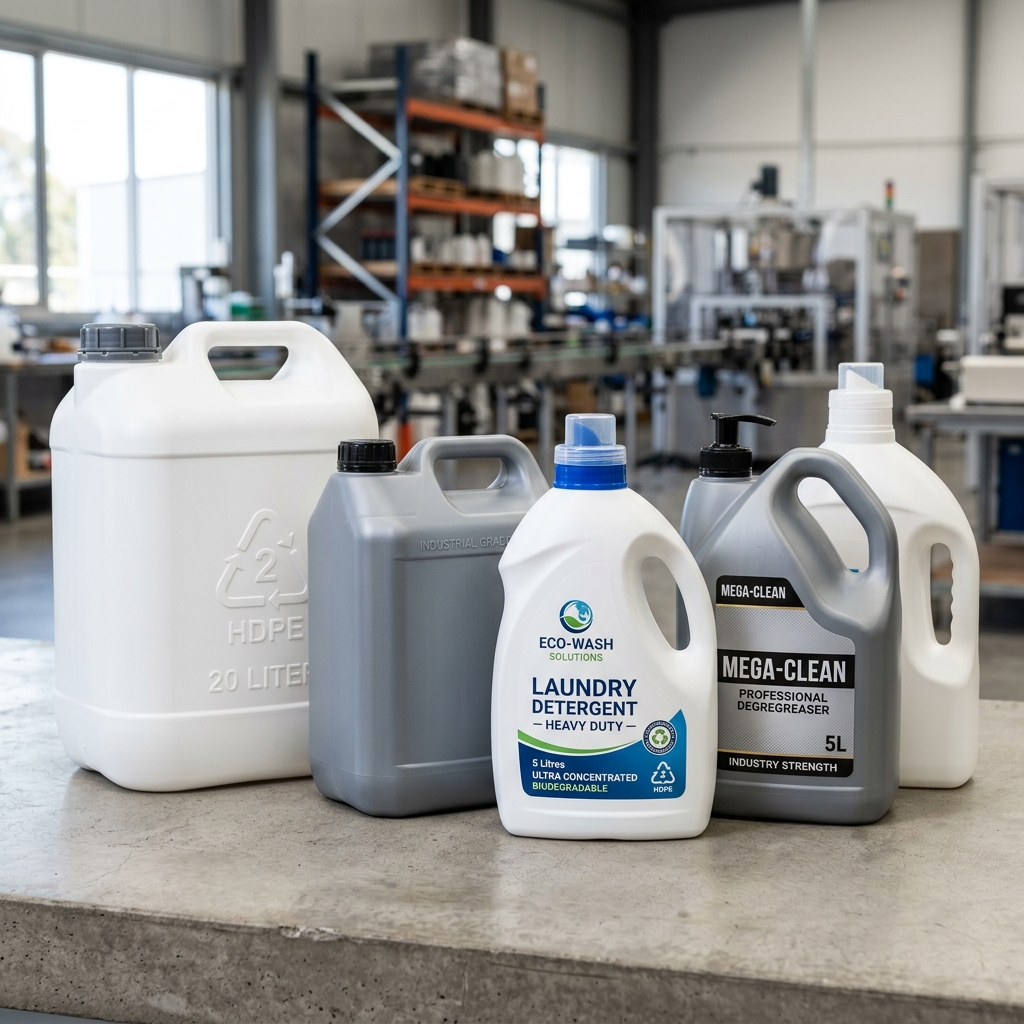

EBM – Extrusion Blow Molding
Extrusion Blow Molding (EBM) is highly versatile and ideal for producing durable HDPE containers in a wide range of shapes and sizes. A continuous tube of molten resin (parison) is extruded and then captured inside a mold where air expands it to shape.
- Tailored for HDPE containers
- Excellent for handleware/grips
- Cost-effective for larger formats
- Accommodates complex shapes
- Strong chemical resistance
- Household & cleaners
- HDPE protein powder jars
- F-style bottles
- Handleware containers
Process 03
Process 04

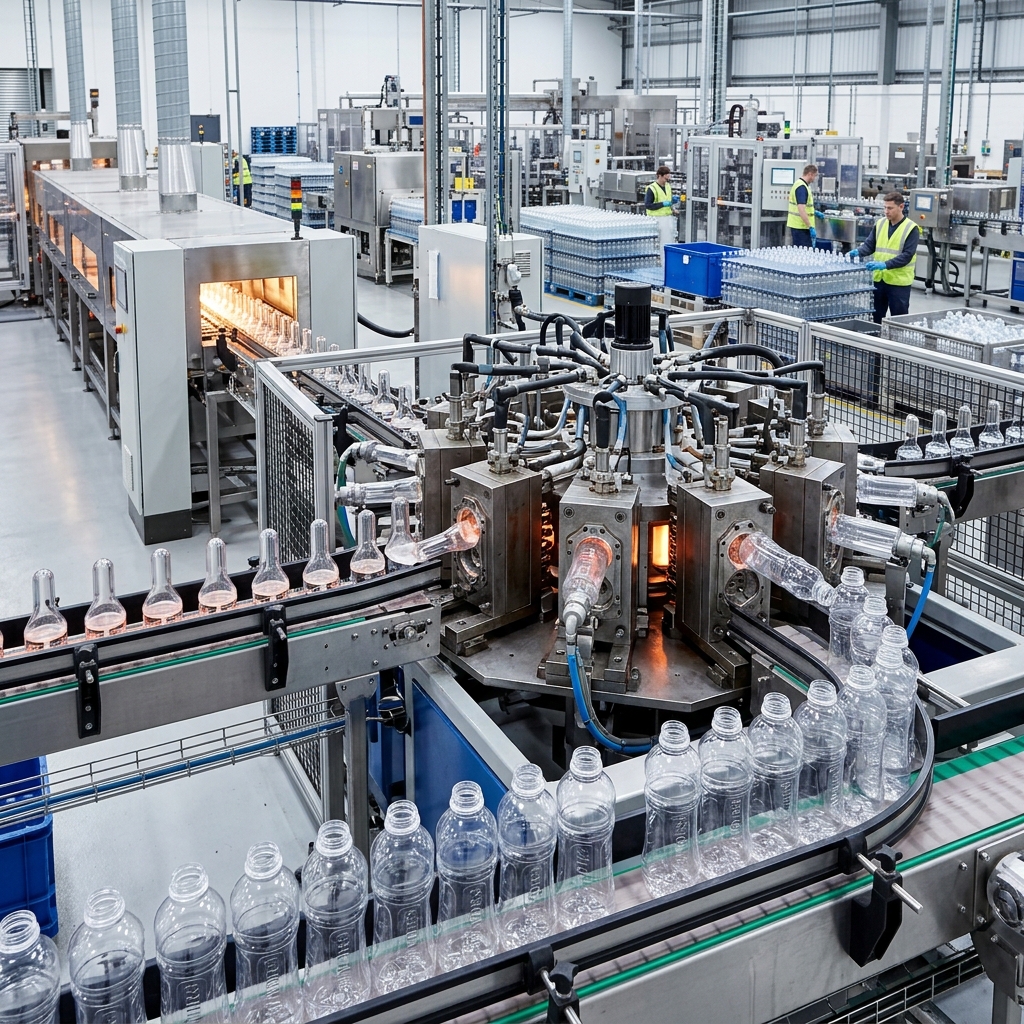

SBM – Reheat Stretch Blow Molding
Reheat Stretch Blow Molding (SBM) is a variation of stretch blow molding where preforms are produced separately (often in high cavity tools) and later reheated in a specialized oven before being blown into bottles.
- High production efficiency
- PET clarity and strength
- Ideal for high-volume orders
- Flexibility in preform sourcing
- Strong material distribution
- High-volume beverage bottles
- Water & sports drink packaging
- Retail liquid bottles
Choosing the Right Technology for Your Application
Our engineering team evaluates each project to determine the most efficient and performance-driven manufacturing approach, selecting the optimal molding technology based on key design vectors.
Material Requirements
Determining the correct polymer base (PET vs. HDPE) is fundamental, as it dictates compatibility, strength requirements, and mold characteristics.
Barrier Performance
Analyzing OTR (Oxygen Transmission Rate) and MVTR (Moisture Vapor Transmission Rate) parameters to maximize shelf-life and preserve product formulas.
Container Size & Geometry
Evaluating handle shapes, sharp corners, rectangular formats, or neck dimensions to choose the right blow mold platform.
Regulatory Alignment
Aligning manufacturing runs with pharmacopeia and food contact compliance mandates (FDA, USP) under ISO-certified clean production rooms.
Production Scale
Balancing upfront tool investments with unit output velocities to find the most cost-efficient technology for target rollouts.
Sustainability & PCR Goals
Adapting processes to allow seamless integration of Post-Consumer Recycled (PCR) resins (PET & HDPE) while ensuring mechanical stability.
Why Our Molding Technology Matters
Selecting the correct blow molding process directly impacts every dimension of a bottle's lifecycle. By maintaining control across multiple manufacturing platforms, Arch Plastics Packaging ensures that product properties are optimized.
Structural Integrity & Top-Load Strength
Containers are engineered to withstand axial capping forces and stacking pressures in logistics channels.
Wall Thickness & Material Distribution
Ensures uniform distribution of plastic, eliminating thin spots and securing barrier performance.
Neck Finish Precision
Provides perfect closure engagement to prevent product leakage or loss of sterile/barrier environments.
Recyclability & PCR Performance
Formulated to easily transition into recycle streams, utilizing PCR resins seamlessly.
Molding Platform Performance
At Arch Plastics Packaging, our technology is aligned to deliver high structural stability, optimized resin consumption, and flawless closure tolerances, helping brands launch scalable bottle configurations globally.
Let's Engineer the Right Solution
Whether your application requires precision pharmaceutical packaging, lightweight PET beverage bottles, durable HDPE household containers, or scalable nutraceutical solutions, our manufacturing technologies are built to support your growth.
